Harnessing the Power of High Volume Low Speed Fans: A Complete Guide

Byadmin

When it comes to cooling expansive indoor spaces, the High Volume Low Speed (HVLS) fan stands out as an efficient, effective, and energy-smart solution. In the first paragraph itself, it’s worth noting that a High Volume Low Speed Fan moves massive amounts of air at a slow rotational speed. Unlike many traditional high-speed fans that churn air in narrow, forceful bursts, HVLS fans generate a gentle, laminar airflow that envelopes an entire space. This not only improves thermal comfort but also reduces perceived temperature, making them ideal for large warehouses, gyms, factories, auditoriums, and other sizable enclosures.

What Is a High Volume Low Speed Fan?

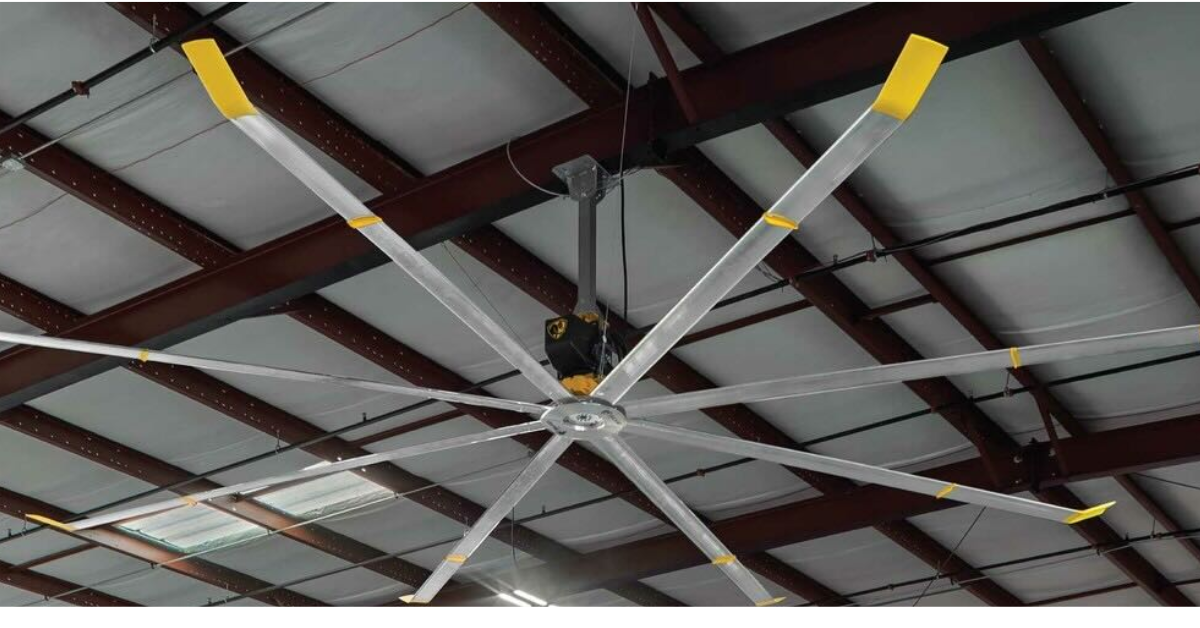

A High Volume Low Speed fan is a large-diameter fan—often ranging from 2 m to over 7 m in span—that operates at relatively low rotational speeds. The idea is simple: a wide blade sweeps across a large area, moving a high volume of air slowly. This contrasts with smaller, high-speed fans that push concentrated air in a narrow stream. The slow, expansive movement of HVLS fans creates a broad “air curtain” that improves overall circulation, reduces stagnation, and enhances thermal comfort.

Core Components & Design

Key elements of an HVLS fan typically include:

  • Large rotor / blades: The diameter is one of the most defining features; larger blades allow coverage of more area.

  • Low-speed drive system: Usually featuring a geared motor or direct-drive with torque control, optimized for quiet, steady rotation.

  • Mounting structure: Ceiling mounts, roof mounts, or overhead supporting framework.

  • Control electronics / variable speed drive (VFD): Enables adjusting speed, reversing direction, or integrating with building management systems.

  • Safety and durability features: Robust materials, safety brackets, anti-vibration systems, and reliable electrical protection.

Why Use HVLS Fans? Key Benefits

1. Energy Efficiency & Cost Savings

One of the strongest selling points is that an HVLS fan moves a large volume of air with relatively low energy consumption. Because it runs slowly and efficiently spreads airflow, it often consumes far less power compared to multiple smaller high-speed fans, or offsets the load on air conditioning systems. Over time, this can lead to significant energy savings.

2. Improved Comfort & Thermal Perception

HVLS fans don’t necessarily lower the room’s actual temperature by much, but they improve thermal comfort. The motion of air over the skin enhances evaporative cooling, which makes occupants feel cooler. This reduces heat stress, especially in large spaces where many people or heat-generating equipment are present.

3. Better Air Circulation & Indoor Air Quality

By creating continuous, consistent airflow, HVLS fans help reduce pockets of stale or hot air. This circulation can also help distribute cooled or heated air more evenly, avoid stratification, and reduce humidity and odor accumulation.

4. Quiet Operation & Low Maintenance

HVLS fans are designed for quiet functionality. Because they rotate slowly and steadily, there’s less turbulence and noise compared to high-RPM fans. Additionally, fewer units might be needed, which simplifies maintenance. Their robust construction often means less frequent servicing.

5. Scalability & Versatility

These fans can be scaled for various sizes and adapted to different settings: industrial plants, agricultural barns, sports halls, event spaces—even outdoor or semi-outdoor areas (with proper ingress protection). Reversible airflow (summer/winter mode) further adds to their versatility by helping to mix air in colder months.

Applications & Ideal Use Cases

Industrial & Warehousing

Large manufacturing plants, warehouses, and distribution centers often struggle with heat buildup and air stagnation. Installing HVLS fans helps maintain worker comfort, reduce heat stress, and maintain optimal environmental conditions for machinery and operations.

Sports Facilities & Gymnasiums

Gyms, fitness centres, and indoor sports halls benefit greatly from HVLS fans, as many people exercising generate heat and require good airflow. The wide, gentle breeze is comfortable without causing drafts that would be disruptive.

Commercial & Retail Settings

In large retail halls, exhibition centres, malls, or open-plan stores, HVLS fans can help maintain consistent comfort across the space—improving the experience for customers and staff, while reducing reliance on point-source air conditioners.

Educational & Community Centres

Schools, auditoriums, halls, and community centres often have large, multi-use halls with varying occupancy. HVLS fans help balance comfort without deploying many small fans or overworking existing HVAC equipment.

Agricultural & Livestock Buildings

In barns, stables, and greenhouses, maintaining airflow can help with ventilation, temperature control, and reducing humidity or odors. HVLS fans help promote animal welfare and crop health by reducing stagnant air zones.

Engineering Considerations & Design Guidelines

To get the most out of a High Volume Low Speed Fan, several engineering factors must be addressed in planning and installation:

  1. Sizing & Fan Span: Choose a fan diameter suited to the area. Undersized fans won’t produce adequate circulation; oversized ones may have diminishing returns or structural challenges.

  2. Mounting Height & Clearance: Proper vertical clearance from the floor is essential to ensure the airflow penetrates the occupied zone. Incorrect mounting can lead to ineffective circulation.

  3. Number & Layout: Rather than clustering fans, they should be spaced evenly to overlap airflow zones for uniform coverage.

  4. Direction / Reversal Function: Some systems allow reverse fan direction (winter mode) to destratify warm air. This feature can improve heating efficiency during colder months.

  5. Control Strategy: Use VFDs or building automation to adapt fan speeds to ambient conditions, occupancy, or temperature setpoints. Integration with other HVAC systems enables synergies and energy optimization.

  6. Structural Support & Safety: Ensure the ceiling or support structure can handle the dynamic loads and torque. Safety guards and anti-vibration supports are vital.

  7. Maintenance Access: Plan for safe access for inspections, blade cleaning, and motor servicing without major disruption.

Challenges & Limitations

While HVLS fans offer many benefits, it’s important to understand where they are not ideal, or what constraints must be managed:

  • Upfront Cost: The initial investment is higher than that for conventional fans. However, the long-term energy savings often justify this.

  • Space Constraints: Low ceiling heights or obstructions (mezzanines, ducts, beams) may limit the achievable blade span or placement.

  • Effectiveness in High Ambient Temperatures: In extremely hot, humid climates, HVLS fans may not replace air conditioning but should be viewed as complementary.

  • Airflow Interference: HVAC diffusers, partitions, or obstacles might disrupt the airflow. Proper layout coordination is essential.

  • Power Supply & Motor Requirements: Large motors or variable speed drives may need careful electrical planning, including harmonics, torque, and soft-start features.

Best Practices for Implementation & Operation

To maximize benefits from a High Volume Low Speed fan installation, consider these best practices:

  • Perform a Computational Airflow Study: Use simulation tools to model airflow fields, optimize fan locations, and size properly.

  • Start with Pilot Installations: If a facility is large, begin with a few fans to validate performance before full rollout.

  • Monitor & Adjust: Once installed, gather feedback (temperature, humidity, perceived comfort) and tweak speeds or positions as needed.

  • Regular Maintenance Schedule: Clean blades, check structural supports and electrical systems periodically.

  • Train Personnel: Facility managers and operators should understand how to use variable-speed controls, reverse modes, and how to interpret diagnostics.

  • Integrate with HVAC Strategy: Use fans in tandem with cooling or heating systems. In summer, allow fans to reduce HVAC load; in winter, use reverse mode to mix warm air from ceilings.

Real-World Impact & Return on Investment

In real-world applications, many organizations report energy cost savings of 20–40% when HVLS fans are properly integrated with cooling systems. Some also observe increased worker productivity, reduced perceived heat stress, and fewer complaints about indoor comfort.

Moreover, improved airflow can help with humidity control and reduce spot cooling needs. For facilities with large occupancy variation, the variable-speed nature allows adjusting airflow dynamically—further optimizing energy consumption.

The payback period for a well-deployed HVLS fan system often ranges between 1 to 4 years, depending on energy prices, usage patterns, and the scale of the space. After that, the cost savings are essentially “profit.”

Future Trends & Innovations

Looking ahead, several trends are driving further evolution in HVLS fan technology:

  • Smart and IoT-enabled Controls: Integration with sensors (temperature, humidity, CO₂, motion) to automatically optimize fan speed and direction.

  • Advanced Blade Materials: Using composites and aerodynamic designs to reduce weight, noise, and improve efficiency.

  • Hybrid Systems: Coupling with HVAC, evaporative cooling, or heat recovery systems for synergistic performance.

  • Low-Carbon & Renewable Power Integration: Using solar or other renewable sources to power fans, especially in remote or off-grid installations.

  • Modular / Expandable Systems: Fans that can be added or upgraded easily as facility needs change.

Conclusion

In summary, the High Volume Low Speed Fan has emerged as a powerful asset in modern building engineering. By moving large volumes of air at slow speeds, HVLS fans strike an ideal balance between energy efficiency, comfort, and practicality. When correctly sized, installed, and controlled, they can transform large spaces—whether warehouses, gyms, commercial halls, or barns—into environments that feel cooler, more comfortable, and far more energy-conscious. While the initial cost is higher, the long-term gains in energy savings, occupant satisfaction, and operational simplicity make HVLS fans a compelling choice for any facility seeking smart, scalable, and effective airflow solutions.
